Case Study: Upgrading High-Output Magnetos from Alnico to Neodymium for Top Fuel Drag Racing
- Ron Zichterman
- 11 hours ago
- 2 min read
The Challenge: Magneto Ignition System at Altitude
Application: A high-end magneto ignition system designed for supercharged V8 engines in Top Fuel drag racing.
The Bottleneck: The existing Alnico-based magnetos were extremely inefficient and heavy, struggling to perform in the thinner air of high-altitude tracks like Denver's Bandimere Speedway. Because Alnico has low coercivity, the entire assembly had to be magnetized as a single unit, making manufacturing difficult and limiting performance.
Constraints: The system had to be significantly lighter to improve acceleration while delivering high spark energy to ignite ultra-rich air/fuel mixture--often as low as 2:1. Crucially, a prototype was required within a strict 2-month window for testing before the next race.
The Engineering Solution: Upgraded Magnets and a Redesign
Our team approached the redesign by replacing low-coercivity legacy materials with a modern, high-efficiency magnetic circuit.
Material Optimization: We transitioned the design from a large Alnico 5-7 cylinder and pole pieces to an array of small, high-remanence, high-coercivity rare earth Neodymium (NdFeB) magnets. This shift allowed us to reduce the magnetic assembly to just 20% of the volume of the original unit.
Eddy Current Mitigation: To combat heat buildup that can degrade magnetic power, we implemented a non-conductive phenolic retainer housing to surround the magnets. This material choice minimized eddy currents and allowed the magnets to operate far below their Curie temperature, maintaining consistent power output.
With the new magnet circuit, the client also made some updates to their design:
Circuit Innovation: They re-engineered the ignition transformer with a low turns ratio (35:1 to 58:1) and utilized a control circuit for bipolar spark generation. This design eliminated transformer core saturation, allowing for high-current pulses even at extreme engine speeds.
Custom Mechanical Engineering: To handle the increased torque generated by the more powerful system, they replaced standard woodruff keys with a "double flat" shaft connection to prevent mechanical failure at high RPMs.
The Results: a Racing Win and a Patent
The redesign delivered a massive leap in power density and reliability.
Performance: The new magneto produced significantly higher spark energy levels which allowed for the required air-to-fuel ratio in a lower oxygen atmosphere encountered at higher elevations. After generating a prototype and sending it to the client, they called a few days later with feedback:
Client: "It blew up our test equipment!"
QT engineer: "Oh! … I'm sorry!"
Client: "No, this is fantastic! We can't believe the power we're getting from this thing!"

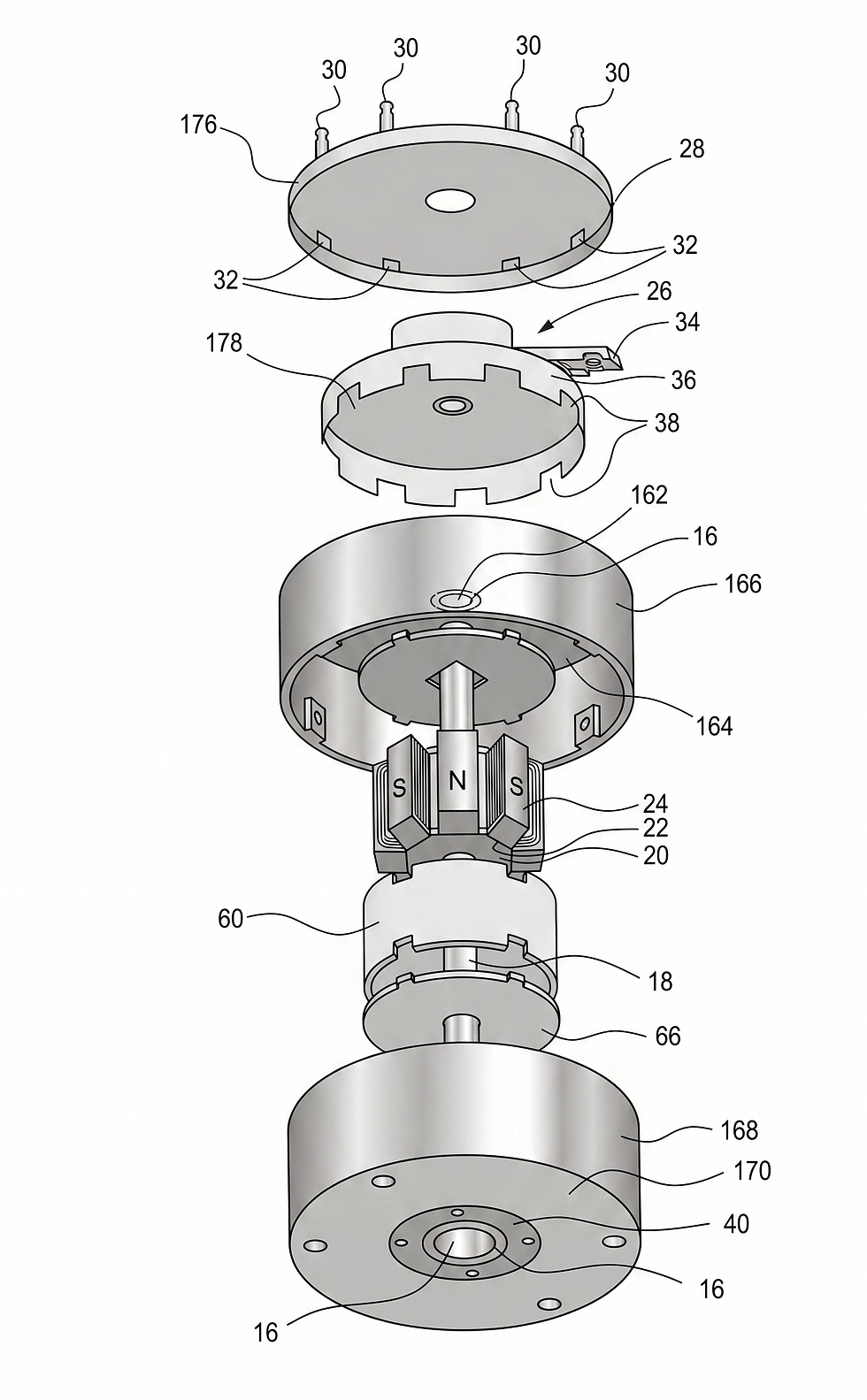

Competitive Edge: The dragster equipped with our redesigned magneto went on to win the race. This disruptive magnetic circuit design was so uniquely effective that it resulted in a proprietary patent (US Patent 5,829,422), cementing our client's competitive edge in the market.
Partner with Magnetics Experts
Whether you are dealing with extreme elevations, high-torque requirements, or strict weight constraints, our engineering team specializes in making the "impossible" magnetic circuit a reality.
Contact us to learn more!
